Stainless Steel / RGB LED
EOP-RRGB-01
OUTDOOR COLOR CHANGING LED LIGHTING SYSTEM
Eyeleds® Outdoor PRO (BLE-ND RGB) Outdoor Pro (BLE-ND RGB) must be operated by a special driver. Two types of drivers are possible.
- ColorEye RGB Sequencer box and a single, wall mounted on/off switch. The color cycle mode, runs automatically and continuously when the system is switched on. Each color within the spectrum can be selected as a static color, simply by swiftly switching the system off and on.
- The ColorEye RGB BLE controller box this is a bluetooth driver. With the BLE-ND app from the App store a Bluetooth Low Energy connection can be made and the desired color can be selected with the app. All RGB colors and dimming is possible. Read more about BLE-ND technology

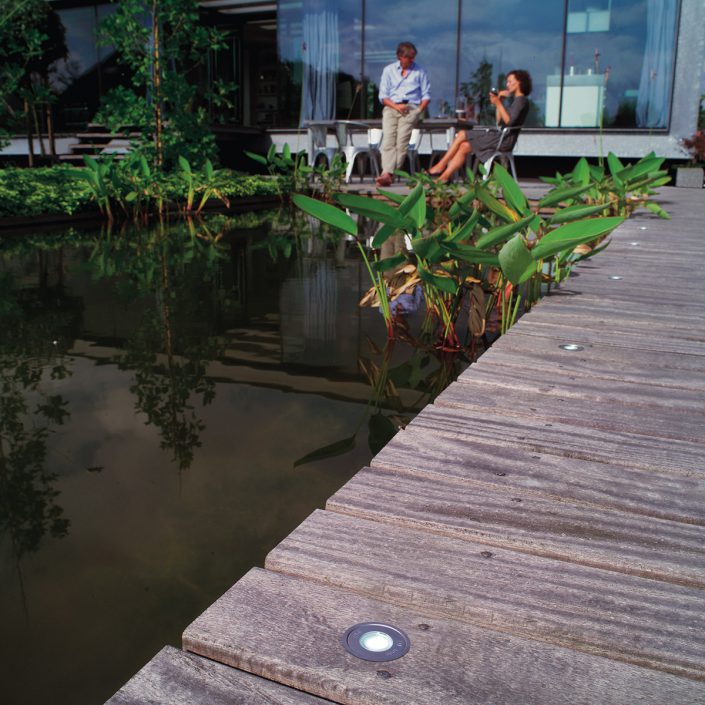

Eyeleds® Outdoor Pro (BLE-ND RGB) is used as accent-, orientation-, marker, guide- or night-lights in outdoor landscape designs, in decking, pavers, tile, boat docks, piers, concrete sidewalks and driveways. The solid construction is engineered to withstand heavy use: walking or even driving over the lights is not a problem.
Eyeleds® Outdoor Pro (BLE-ND RGB) is an innovative range of plug and play outdoor surface lighting with pre-attached waterproof IP67 connectors. Eyeleds® Outdoor is used as accent, orientation, marker, guide
APPLICATIONS:
Tile, stone & pavers
Decking & deck tiles

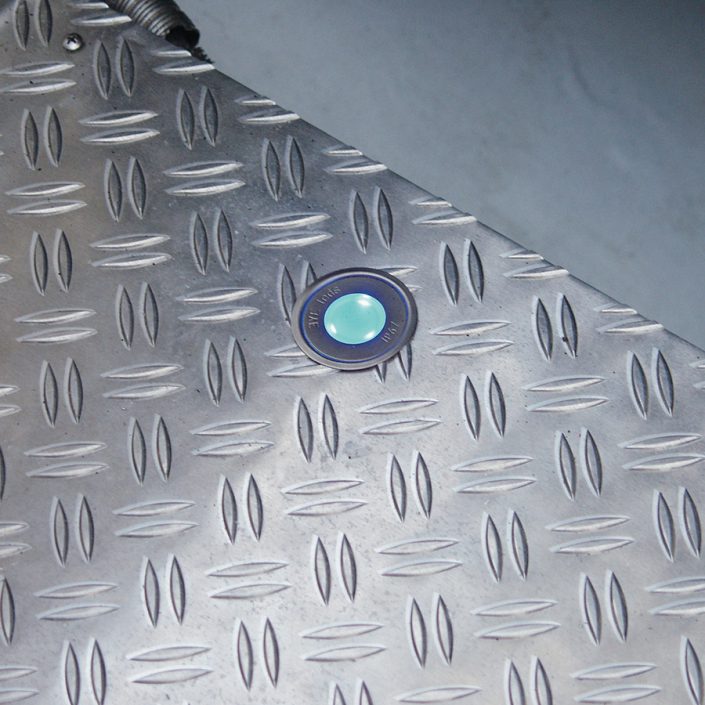

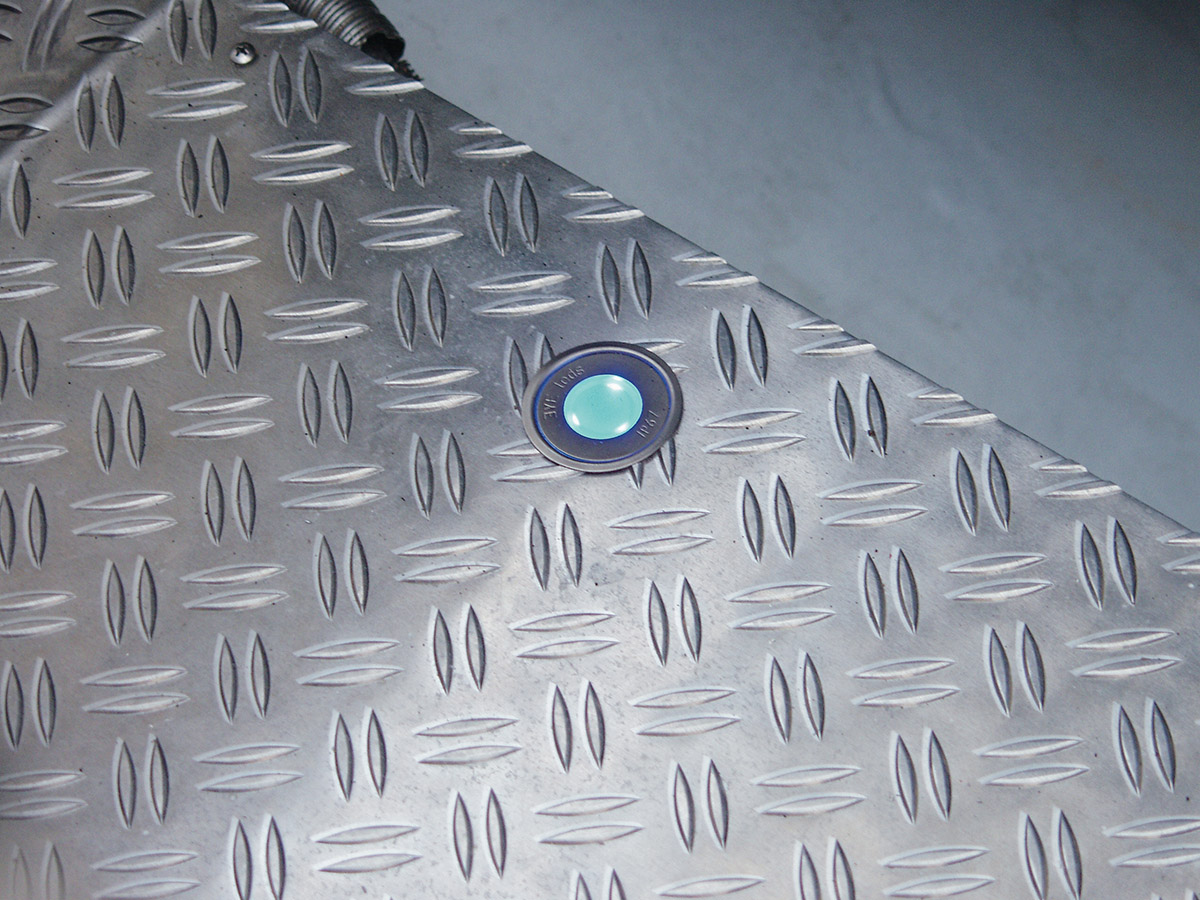

Boat docks & piers
Sidewalks & driveways
PRODUCT CONFIGURATION & DIMENSIONS
Eyeleds® OUTDOOR PRO (BLE-ND RGB)
FEATURES & BENEFITS
Easy to install
Easy to install LED luminaire, designed for exterior surfaces
Low profile fixture
Low profile fixture that recesses into a 40 mm diameter hole
Long lifespan
100,000 hours lifespan which equals 34 years, if turned on 8 hours per day
Connection boxes included
Direct burial IP67 connection boxes included
Powered by a 12V D
Powered by a 12V DC, short circuit protected LED driver
Sustainable and efficient
Sustainable and efficient SMD-LED that consumes only 0.3W of energy
Cool to touch
The lights are cool to touch, the lighting surface won’t get hotter than 34°C
UV-resistant lens
UV-resistant lens and marine grade stainless steel (316) fixture
Solid walk/drive-over
Solid “walk/drive-over” construction, designed for loads up to 2850N/285kg
Testresults
Tested for operating conditions, ranging from -35°C to +65°C
SPECIFICATIONS
Power consumption: 0.45W, 25 mA
Voltage: 12V DC
Rated life: Up to 50.000 Hours
Materials: Lens: PC | Fixture: Stainless Steel 316
Walkover pressure: Max 285 kg
Surface temperature: Max 34°C
Environment: IP67 / Indoor Use Only
Warranty: 5 Years Limited
Standards: CE
DOWNLOADS/MANUALS
– Manual OUTDOOR PRO
ACCESSORIES
OPA-11000
Power Supply 18W
OPA-BLE-EU Outdoor Pro PSU-EU 12VDC/18W
OPA-BLE-UK Outdoor Pro PSU-UK 12VDC/18W
OPA-BLE-US Outdoor Pro PSU-US 12VDC/18W
Max. 35 pc. of Outdoor Pro (BLE-ND RGB)
