4500K
Stainless Steel / Cool White
EMU-SCW-01


3000K
Stainless Steel / Warm White
EMU-SWW-01


Stainless Steel / Blue LED
EMU-SBL-01


Stainless Steel / Amber LED
EMU-SAM-01

LED FLOOR LIGHTING SYSTEMS

Eyeleds® Multi Square, a single, linkable version of the popular ‘Floorleds’, floor lighting system, features a built-in depth of just 6.5 mm and offers revolutionary possibilities to be creative with light.

Eyeleds® Multi Square can be used as interior design accents, guide or night-lights. Additionally, this system can be installed into existing flooring by accessing the floor below to link the connectors together through a basement or crawl space.

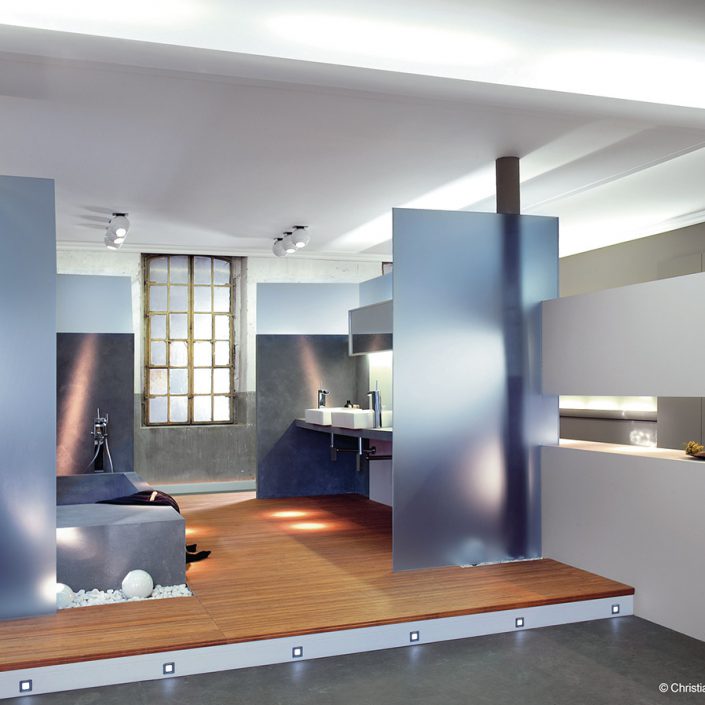

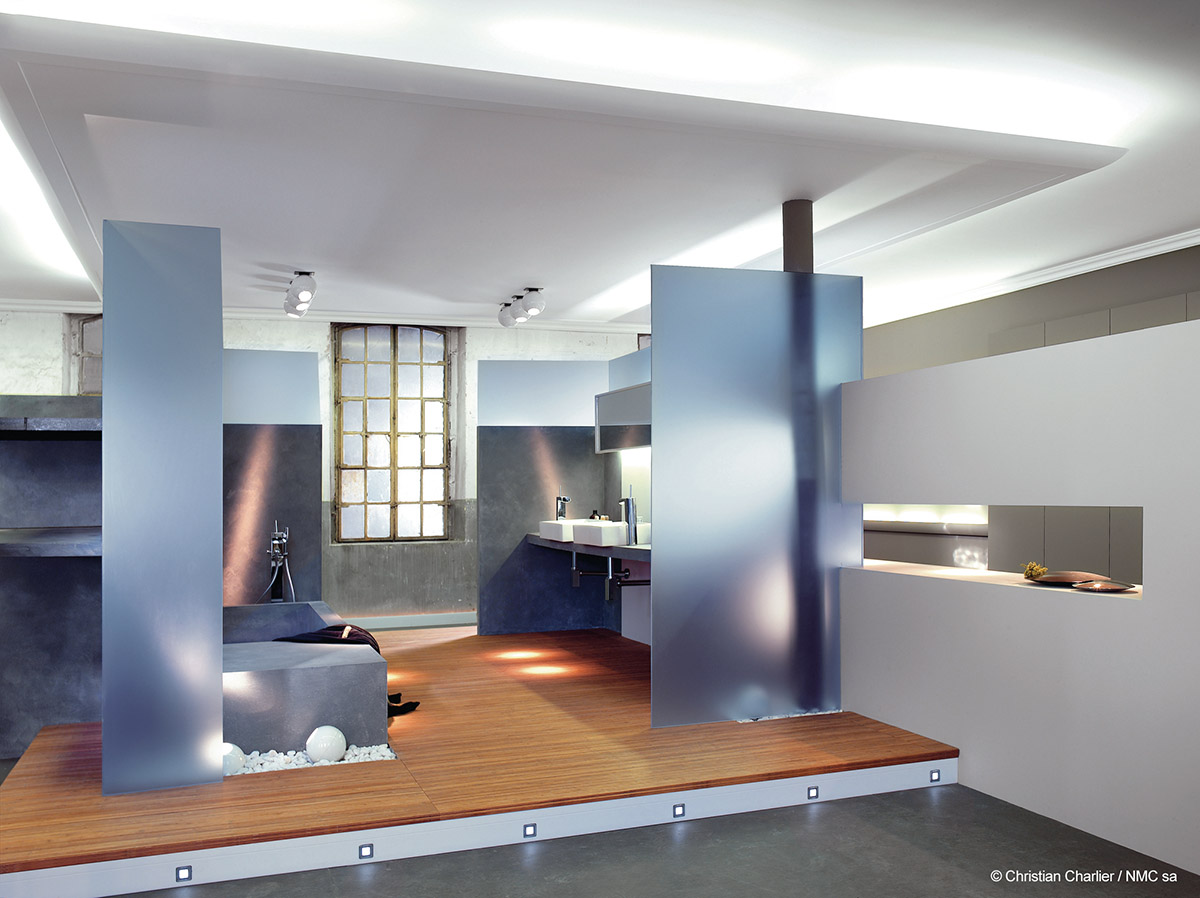

Eyeleds® Multi Square are perfect for commercial applications such as restaurants, retail establishments, entertainment facilities, sport facilities, theatres, casinos or hotels. The solid Eyeleds® construction is designed to withstand heavy use; walking or even driving over the lights is not a problem.





APPLICATIONS:

Wooden flooring, indoor tiles, marbel etc.

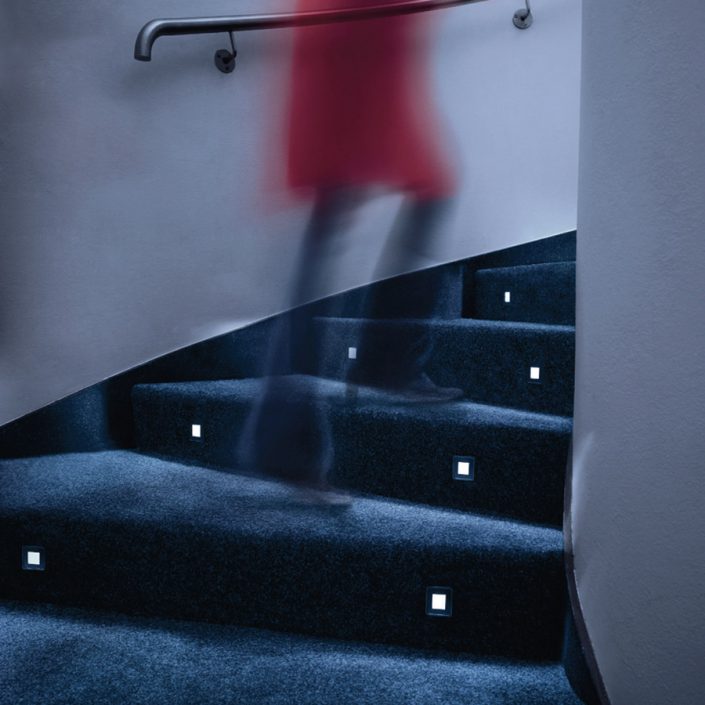

Stair treads, stringers & risers
Baseboards & profiles
Countertops & cabinets



PRODUCT CONFIGURATION & DIMENSIONS

Eyeleds® Multi Square is a single, linkable LED unit with two 80 cm cables and pre-attached male and female IP67 plug connectors.











FEATURES & BENEFITS

Easily installed

Easy to install, recessed fixtures that require a minimal material thickness of only 7 mm

Long lifespan

Long lifespan of up to 100.000 hours which equals 34 years, if turned on 8 hours per day

Energy-efficient

Energy-efficient, solid state light source (Round 0.3W, Square 0.6W)

Solid construction

Solid construction with UV resistant polycarbonate lens can withstand 285 kg of weight load

Cool to the touch

The lights are cool to the touch, the lighting surface won’t get hotter than 34°C

Available in…

Available in round and square shapes with a brushed stainless steel finish

4 LED Colors

Choose from 4 LED colors: warm white, cool white, blue or amber

SPECIFICATIONS



Lumen output: 2.0 lm


Power consumption: 0.6W


Voltage: 12V DC


Rated life: Up to 100.000 Hours


Materials: Lens: PC | Fixture: Stainless Steel 316


Walkover pressure: Max 285 kg


Surface temperature: Max 34°C


Environment: IP67 / Indoor Use Only


Warranty: 5 Years Limited


Standards: CE

DOWNLOADS/MANUALS
Manual MULTISQUARE







ACCESSORIES

Built-In Driver EIA-10000
12W / 12V DC
220-240V
max. 60 pcs of Floorleds
L 51/B 51/H 24 mm

Built-In Driver EIA-15000
20W / 12V DC
220-240V

Plug-In Driver EIA-11000
5W / 12V DC
220-240V


On/Off + Dimmer incl. RC EIA 12000<

T-Splitter EIA-20000

Extension Cable
EIA-30002 – 100 cm (1.6”)
EIA-30003 – 300cm (3.2”)
EIA-30004 – 600cm (9.8”)


Clamp Ring (carpet) EIA- 60000

End Stop EIA-40000
