4500K
Stainless Steel / Cool White
EOB-RCW-01
3000K
Stainless Steel / Warm White
EOB-RWW-01
Stainless Steel / Blue LED
EOB-RBL-01
Stainless Steel / Amber LED
EOB-RAM-01
OUTDOOR SURFACE LED LIGHTING SYSTEMS
Eyeleds® Outdoor Basic/Pro is an innovative range of outdoor surface lighting driven by energy efficient and long lasting LED technology. The range consists of architectural, recessed, walk-over landscape lighting, and is available in the round lens style. The Outdoor Basic rounds are used as accent, orientation, marker, guide or night-lights, in decking, pavers, tile, boat docks, piers, concrete sidewalks and driveways.
Eyeleds® Outdoor Basic/Pro, low profile LED light fixtures, install flush into most exterior surfaces. The fixture recesses into a 40 mm hole, drilled through the surface of the material. The fixtures are made of top quality materials and components that are resistant to corrosion and UV- radiation. The solid construction is engineered to withstand heavy use: walking or even driving over the lights is not a problem.
APPLICATIONS:

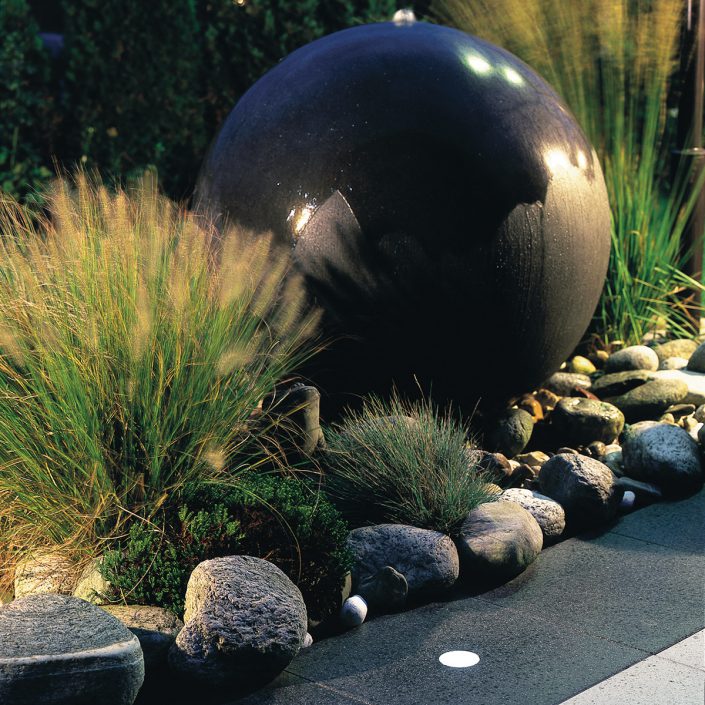

Tile, stone & pavers
Decking & deck tiles

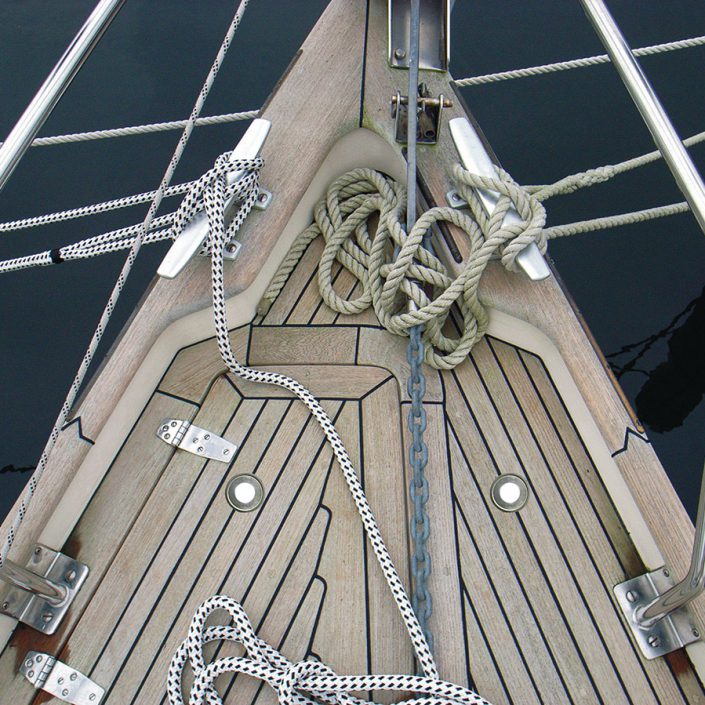

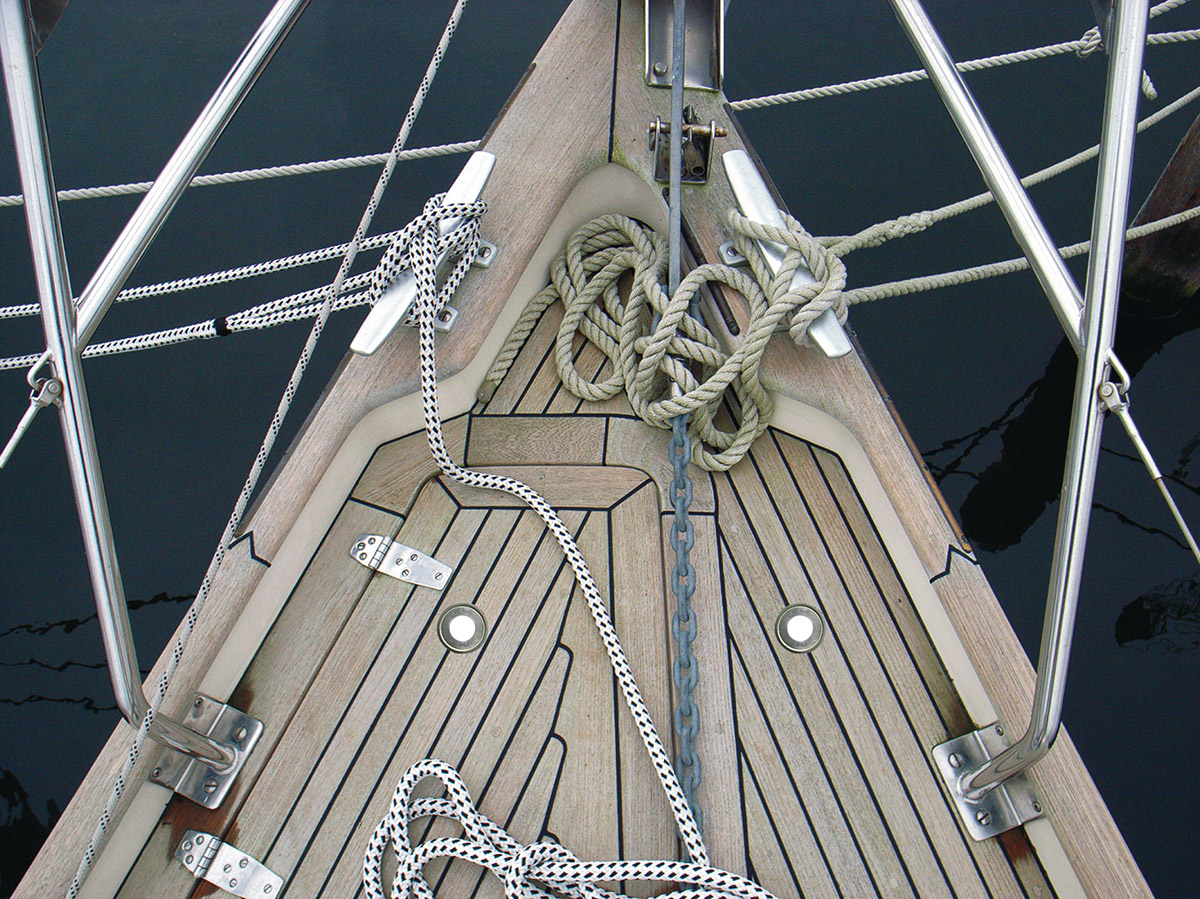

Boat docks & piers

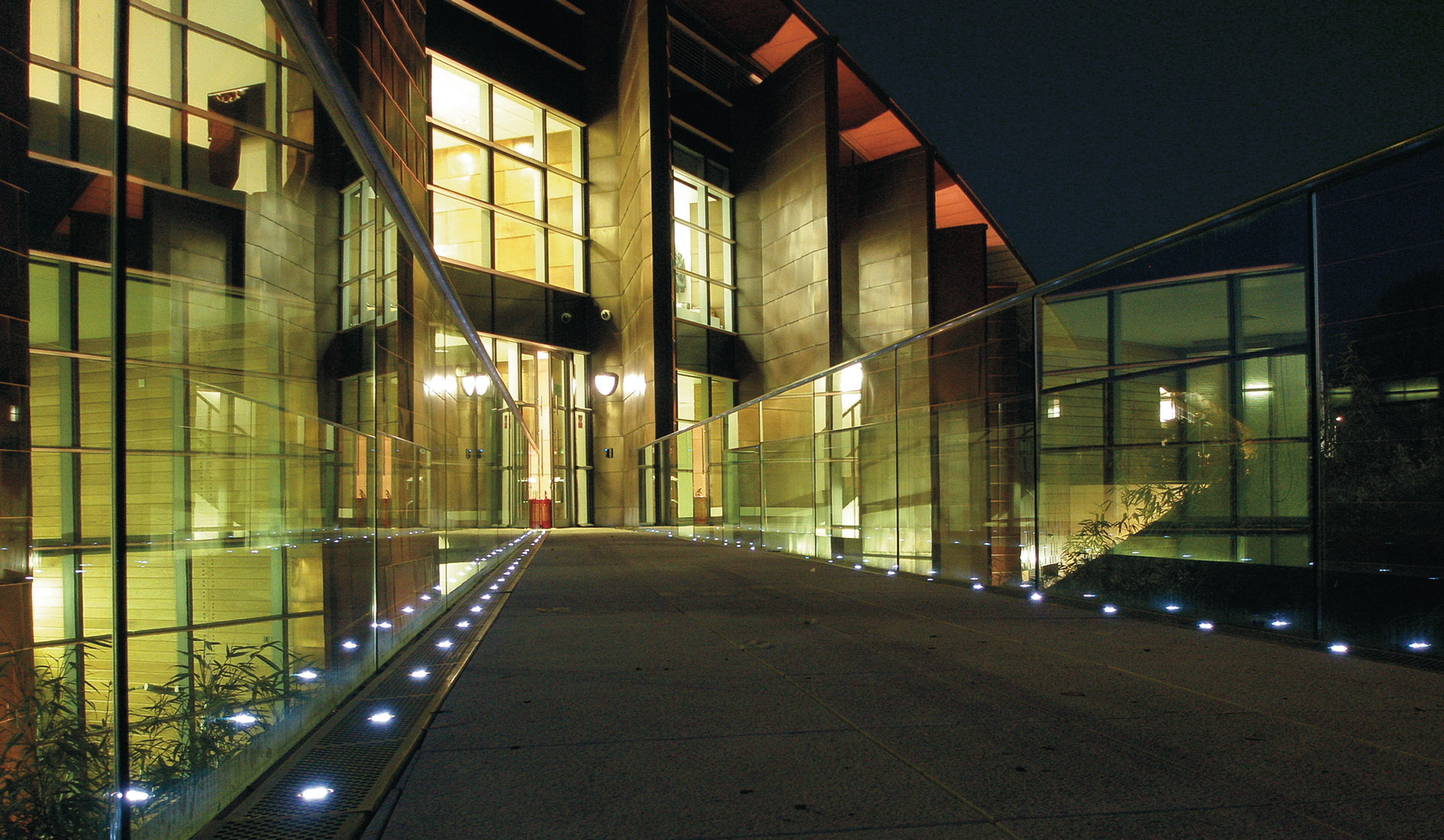

Sidewalks & driveways
PRODUCT CONFIGURATION & DIMENSIONS
Eyeleds® Basic/Pro is a single, linkable LED unit with two 80 cm cables and pre-attached male and female IP67 plug connectors.
FEATURES & BENEFITS
Easily installed
Easy to install LED luminaire, designed for exterior surfaces
Low profile fixture
Low profile fixture that recesses 27 mm into a 40 mm diameter hole
Long Life Span
100,000 hours lifespan which equals 34 years, if turned on 8 hours per day
Connection boxes included
Direct burial IP67 connection boxes included
Powered by a 12V DC
Powered by a 12V DC, short circuit protected LED driver
Sustainable and efficient
Sustainable and efficient SMD-LED that consumes only 0.3W of energy
Cool to touch
The lights are cool to the touch, the lighting surface won’t get hotter than 34°C
UV-resistant lens
UV-resistant lens and marine grade stainless steel (316) fixture
Solid walk/drive-over
Solid “walk/drive-over” construction, designed for loads up to 2850N/285kg
Testresults
Tested for operating conditions, ranging from -35°C to +65°C
4 LED Colors
Choose from 4 LED colors: warm white, cool white, blue or amber
SPECIFICATIONS
Lumen output: 1.6 lm
Power consumption: 0.3W, 25mA
Voltage: 12V DC
Rated life: Up to 100.000 Hours
Materials: Lens: PC | Fixture: Stainless Steel 316
Walkover pressure: Max 285 kg
Surface temperature:
max. 34 °C
Operating temperature:
-35°C to +65°C
Environment: IP67 / Outdoor Rated
Warranty: 5 Years Limited
Standards: CE
DOWNLOADS/MANUALS
– Manual Outdoor Basic
ACCESSORIES EYELEDS BASIC
